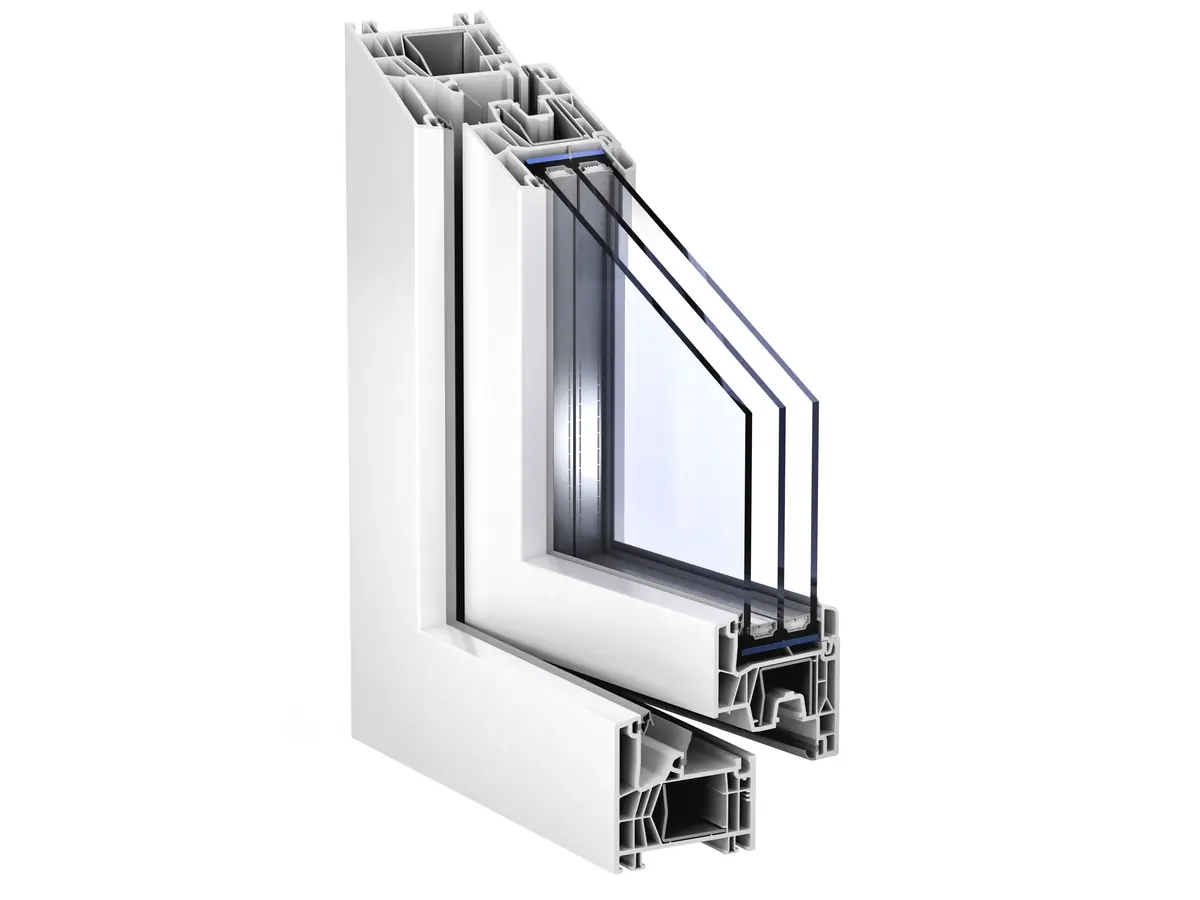

KÖMMERLING Xtrem 76MD
Our usual recommendation: 76 mm profile with a central seal.
Manufacturer imageuPVC windows
uPVC windows and double glazing for the Costa Blanca
Tu Ventana Costa Blanca makes and fits made-to-measure Kömmerling uPVC windows, double glazing and insulated roller shutters from Alicante to Denia. On this coast the glass is chosen for July sun, salt air and street noise, not for cold winters.
We speak English. Eduardo answers on WhatsApp, 9:00–20:00 Spain time (8:00–19:00 UK time), and replies within 24 hours.
The problem
On this coast the enemy is the sun, not the cold
Most window advice is written for Northern Europe, where the aim is to keep heat in. The Costa Blanca works the other way round. The coast gets almost 3,000 hours of sunshine a year, frost is rare, and August nights often stay above 20 °C.
So the real problems are different. A west-facing living room overheats by late afternoon. Cooled air leaks out through old sliding doors and uninsulated shutter boxes. Salt air seizes hardware near the sea. In Benidorm, bar terraces and night-time noise come in through single glazing and gaps.
Rain is scarce, about 300 mm a year, but it arrives in a few autumn storms. One heavy storm can bring over 100 mm in a few hours, driven sideways by an easterly wind. That is the day a badly sealed window leaks.
New windows only solve these problems if the system, the glass and the fitting are chosen for them. That is what this page explains.
- 138Google reviews at Tu Ventana Madrid
- 50,000windows installed by Tu Ventana
- over 30 yearsour founder’s time in the trade
- Own teamwe make and fit your windows: no subcontractors
- KömmerlingTu Ventana is in the official network
- NIF B06818421same company as Tu Ventana Madrid: TU VENTANA MADRID SL
Why uPVC rather than old aluminium
uPVC does not conduct heat, so it needs no thermal break: the profile insulates by itself. An old aluminium frame without a thermal break works like a radiator. On a west-facing façade in July it is too hot to touch, and that heat passes into the room.
uPVC also does not corrode in salt air. What salt attacks is the steel in the hardware and the screws, whatever the frame is made of. On the front line we fit hardware with an anti-corrosion treatment as standard.
Are your aluminium windows corroding from the salt air, in Villajoyosa, El Campello or Calpe? Tu Ventana Costa Blanca makes and fits Kömmerling uPVC with anti-corrosion hardware for English-speaking owners. For dark colours on a sunny seafront, it suggests the AluNext AD hybrid, with a lacquered aluminium face. Tu Ventana Madrid is a member of the official Kömmerling network.
Aluminium is still the right answer in some cases, such as very large openings with slim frames. We explain when in uPVC vs aluminium.
Which Kömmerling system for which home
We fit the Kömmerling systems below. The full technical comparison of all seven is on Kömmerling windows.
| System | Profile | U-value (Uw) from | Usually right for |
|---|---|---|---|
| Xtrem 76MD | 76 mm, 6 chambers, 3 seals | 0.73 W/m²K | High-rise flats with air conditioning, sea-facing façades, easterly wind |
| Xtrem 76AD | 76 mm, 5 chambers, 2 seals | 0.83 W/m²K | Sheltered homes, low and middle floors, away from the front line |
| Xtrem 70AD | 70 mm, 5 chambers, 2 seals | 0.89 W/m²K | Holiday flats used a few weeks a year, inner courtyards, tight budgets |
| PremiDoor76 | Lift and slide, 76 mm | 0.80 W/m²K | The big door to the terrace, porch or pool |
| AluNext AD | uPVC core, aluminium outer face | 0.93 W/m²K | Dark colours in full sun, front-line salt air |
Manufacturer data (Kömmerling). The U-value of your window also depends on the glass and on the frame-to-glass ratio of each opening.
The products
The Kömmerling systems we fit
Each opening gets the system it needs, not the most expensive one. The full data for every system is on our Kömmerling windows page.

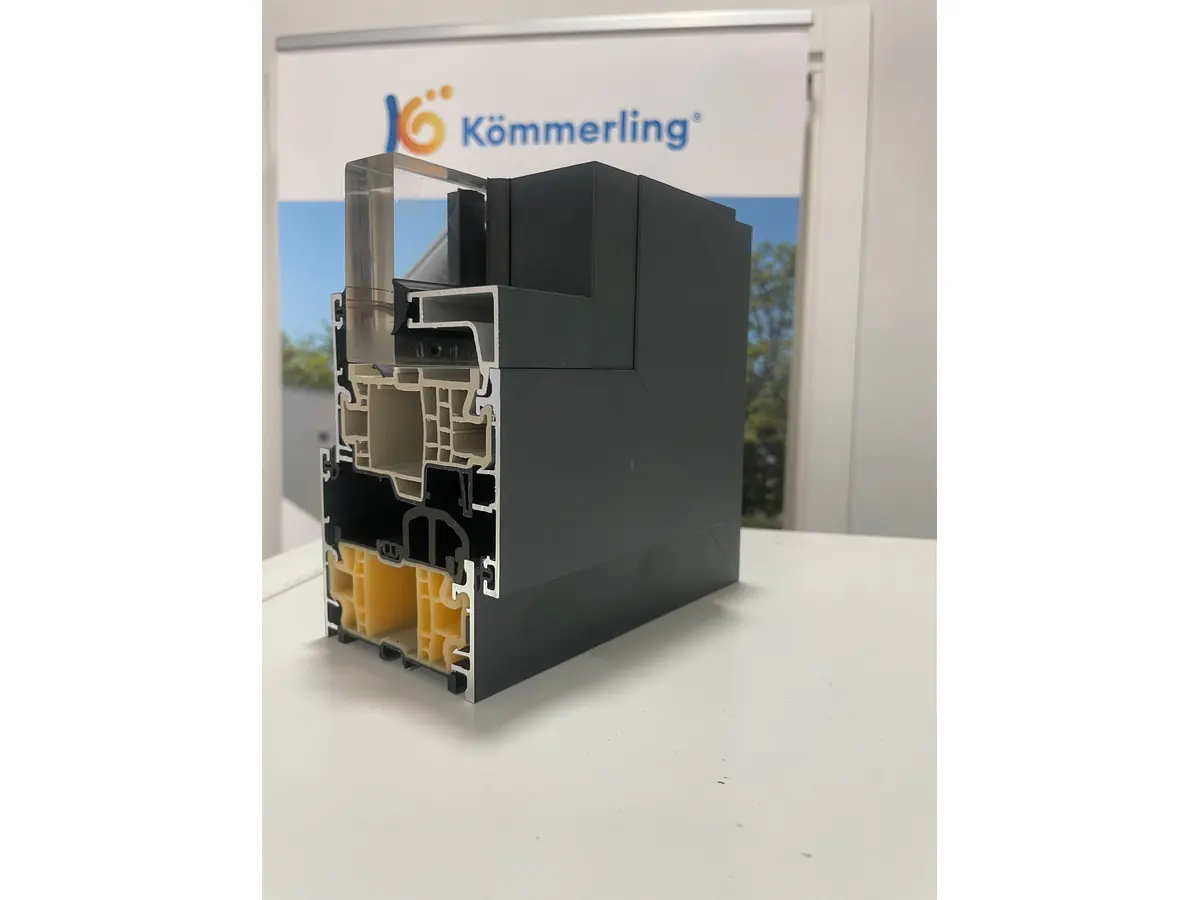

AluNext AD
uPVC inside, lacquered aluminium outside.
Manufacturer image

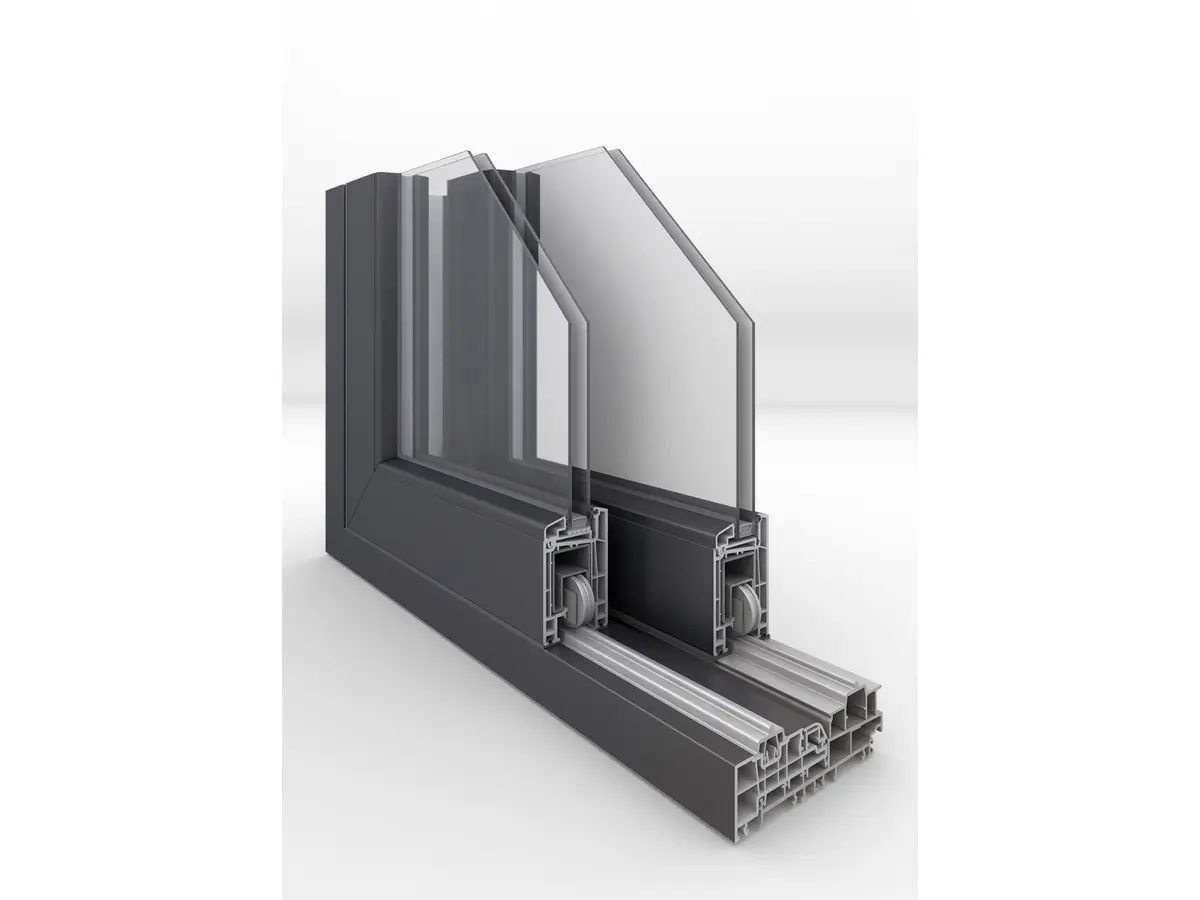

PremiDoor76
The lift and slide door to the terrace.
Manufacturer image

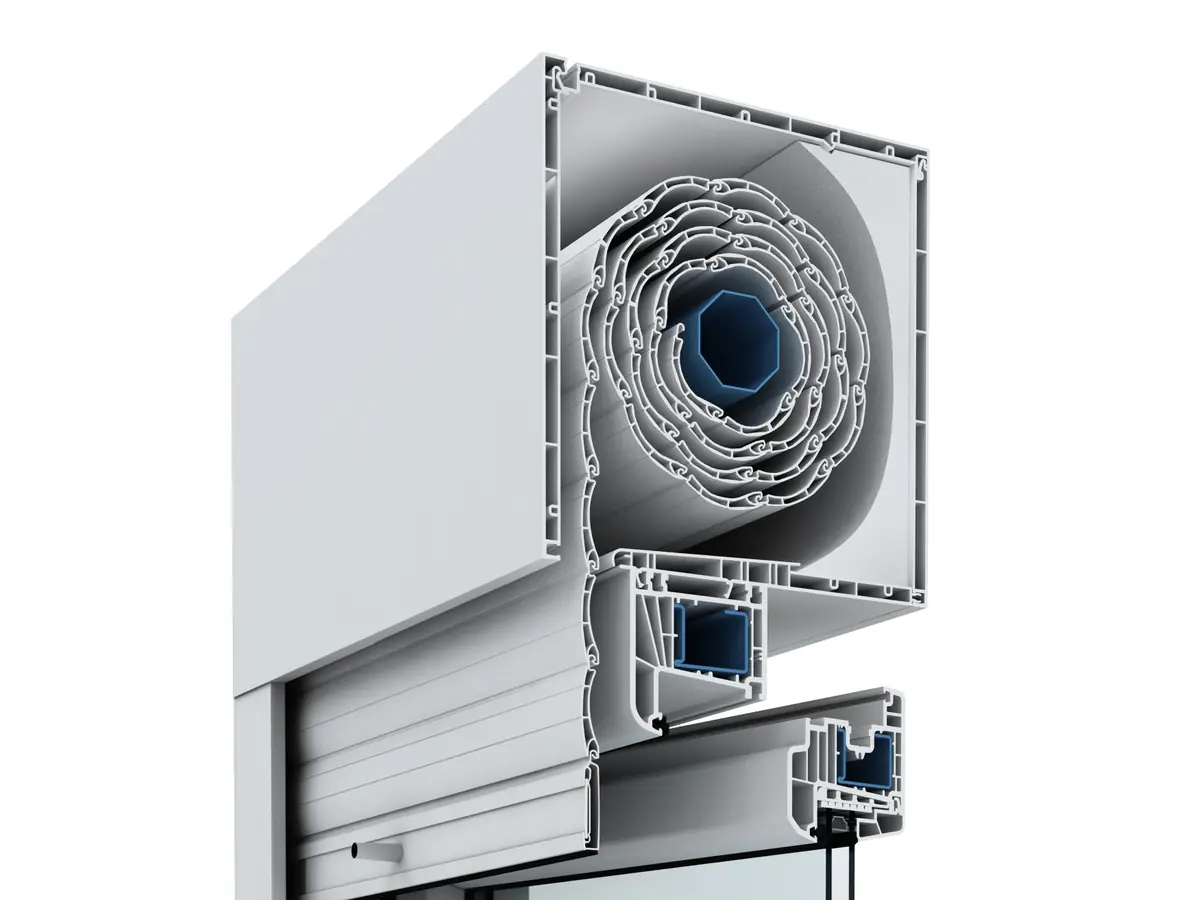

RolaPlus
The insulated roller shutter box.
Manufacturer imageDouble glazing: the glass matters more than the frame
Glass covers about three quarters of a window, so it decides most of the result. Each façade gets the glass its orientation needs:
- Low-E double glazing with argon (4/16/4). The base for every window. It keeps cooled air in during summer and warmth in on winter nights.
- Solar control glass on south and west façades. Its g-value, the share of solar energy that gets through, can drop below 0.40, against about 0.80 for ordinary double glazing. See our solar control glass guide.
- Acoustic laminated glass (6+6/16/4) facing bar terraces, promenades or busy streets. The laminated layer cuts noise; a wider air gap barely does.
- Laminated safety glass on ground floors, first floors and homes left empty for months.
A quote should name the exact glass make-up for each opening, not just "double glazing". If the g-value is missing, the key figure for this climate is missing.

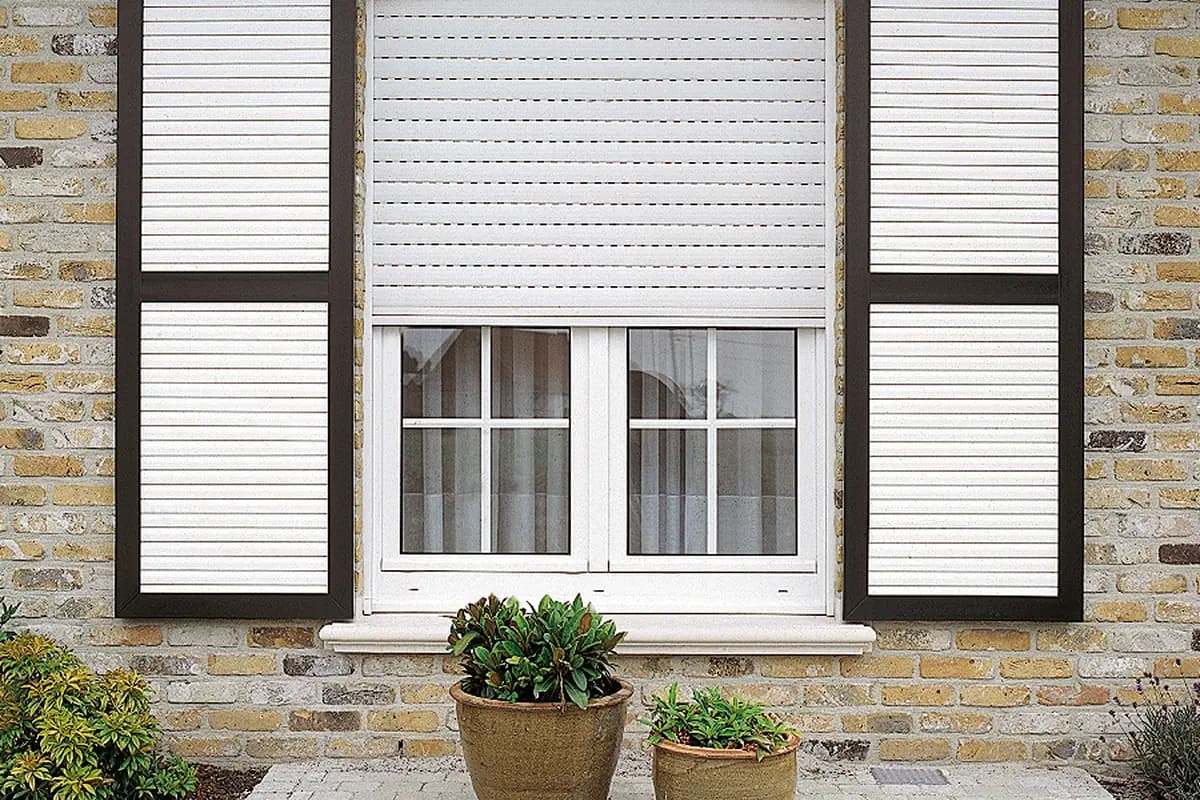

Roller shutters
Roller shutters and the shutter box: where the cool air escapes
In most flats built in the 1960s and 1970s, the roller shutter sits in a brick box above the window. That box is usually uninsulated and open to the street through the strap slot. You can fit an excellent window and still have a hole above it.
That is why we often recommend replacing the shutter box together with the window. The Kömmerling RolaPlus insulated shutter box reaches a U-value (Usb) from 0.79 W/m²K. An old uninsulated brick box is above 3 W/m²K.
RolaPlus also reaches air-permeability class 4, the highest class, and up to 50 dB of sound reduction. That is more than the window itself. It comes in six sizes, so it usually fits the existing opening without cutting into the lintel or the façade.
The cold lintel of an old shutter box is also where condensation and black mould usually start. With sea air at 65–70 % average humidity, an insulated box removes that cold spot.
The shutters themselves can be motorised, which helps in a holiday home. On ground floors, ask for anti-lift devices so the slats cannot be forced up from outside.
Street noise in Benidorm: what actually blocks it
For street noise in Benidorm, Tu Ventana Costa Blanca fits Kömmerling uPVC windows with acoustic laminated glass and an insulated RolaPlus shutter box, sealed into the wall opening. Old windows typically cut 20–25 dB; a well-built set can reach 42–45 dB. English-speaking owners get answers on WhatsApp, 9:00–20:00 Spain time (8:00–19:00 UK time).
Night-time noise here is voices, music and terraces, mostly mid and high frequencies. Acoustic laminated glass handles those well. Deep bass from a sound system is harder: you will still notice it, but at a level that lets you sleep.
Two weak points undo good glass. The old shutter box works like a loudspeaker above the window. An old aluminium sliding door rarely passes air-permeability class 2, and where air passes, sound passes. Treat the whole opening, not only the glass.
Do uPVC windows turn yellow or warp in the Spanish sun?
Good uPVC does not yellow in the Costa Blanca sun. For English-speaking owners on this coast, Tu Ventana Costa Blanca fits Kömmerling profiles, which contain UV stabilisers and carry a Kömmerling profile guarantee of 10 years. Warping is prevented by galvanised steel reinforcement inside wide sashes. For dark colours on sunny, exposed façades, it recommends the AluNext AD aluminium-faced hybrid.

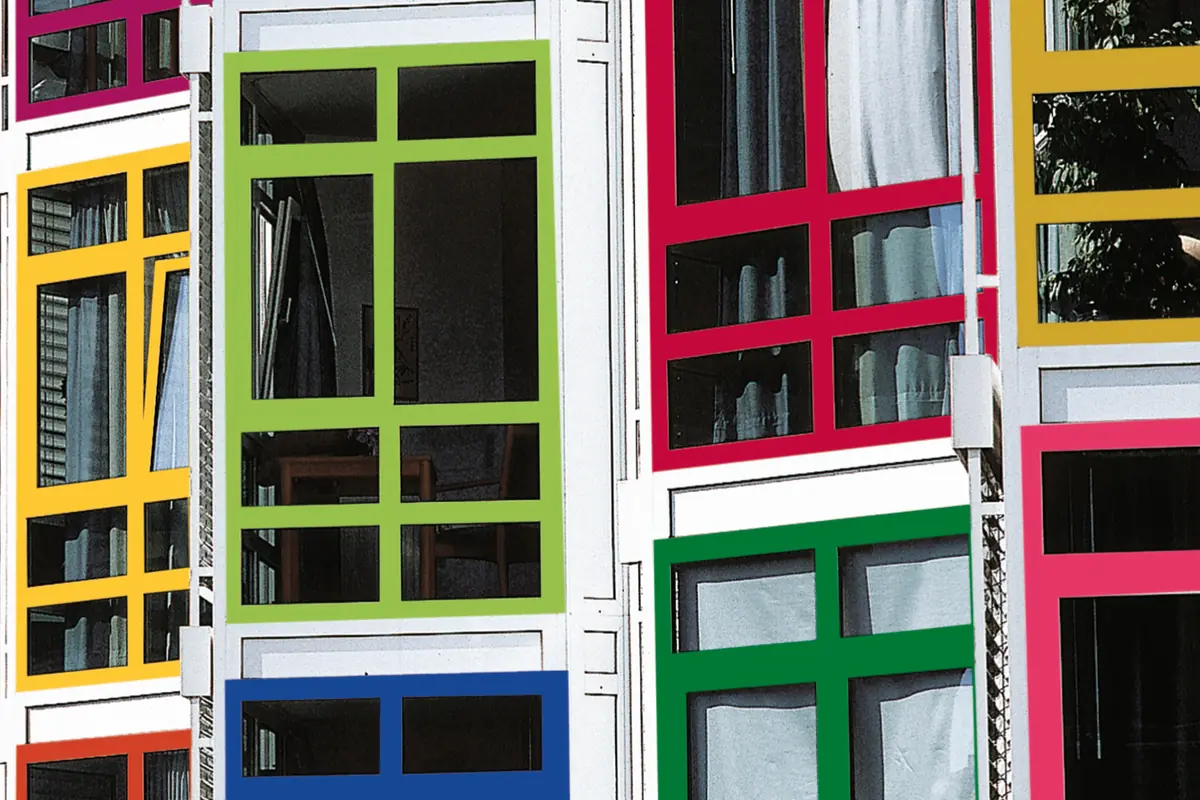

White reflects most of the sun and stays cool, so it is fine in any orientation. Dark foils are fine on sheltered façades. A dark frame on a sea-front façade that takes the afternoon sun is harder. For that case, a quality-marked lacquered aluminium face keeps its colour longer than a foil.
Steel reinforcement matters from about 1.2 m of sash width. Without it, a heavy sash drops over the years and stops closing on its seals. It is included whenever the calculation calls for it, not added later.
What the sun does age are rubber seals and hardware. The central seal of the 76MD, for example, is EPDM, a material made to resist UV and ozone. We still check seals more often here than inland.
Salt air: the hardware decides how long a window lasts
Salt does nothing to uPVC. It attacks the steel parts: locking bolts, hinges, stays and screws. A hardware set without treatment can start to stiffen after three or four winters a few metres from the sea.
On the front line we specify hardware with an anti-corrosion treatment. For a villa facing the sea, ask for grade 5 under EN 1670, which means 480 hours in a salt-spray test, and stainless screws.
Maintenance is simple. Rinse hardware and frames with fresh water two or three times a year, and grease the hardware once a year. Vacuum the tracks of sliding doors, because beach sand is abrasive.
When you do not need the expensive option
Triple glazing rarely pays on this coast. It is designed for hard winters. Here, frost on the coast is rare and the average annual temperature is around 18 °C. Triple glazing adds weight, cost and less light for a winter gain you will hardly notice. The same money does more as solar control glass on south and west façades.
The Kömmerling 88plus is oversized for an ordinary home. It is certified by the Passivhaus Institut for cold climates. It makes sense for new builds seeking certification, or for very tall floor-to-ceiling casements. In a normal flat or villa here, the 76MD gives more for less.
The 76MD is not always needed either. In a sheltered low-floor flat away from the sea, the 76AD or 70AD does the same job for less. In a holiday flat used a few weeks a year, extra insulation takes a very long time to pay back.
We say this before you ask, because we would rather you trusted the rest of the quote.
How the price is worked out
Two homes with the same number of windows can differ a lot in price. A fixed price needs a site survey. These are the things that drive the cost:
- The number and size of the openings, and how many are sliding doors. The terrace door often costs as much as several ordinary windows.
- The system: Xtrem 70AD, 76AD or 76MD, the PremiDoor76 lift and slide, or the AluNext hybrid.
- The glass for each opening: low-E, solar control, acoustic or laminated safety glass.
- Roller shutters and shutter boxes, and whether they are motorised.
- The finish: white, a colour foil, or two colours inside and out.
- Access: floor height, lift size, scaffolding or special equipment.
- Removal of the old frames, and any work needed on the subframe or window sill.
The price we give is final, with VAT included. The quote states the VAT rate applied: 21 % by default, and 10 % only when the legal conditions are met. More on reading quotes in how window quotes work.
How the job works
The process is the same whether you live here or abroad.
- 1
Tell us about the home
Send the quote form with your mobile number. Eduardo replies in English on WhatsApp within 24 hours (9:00–20:00 Spain time, 8:00–19:00 UK time). Photos sent there help us prepare the visit.
- 2
In-person site survey
We always measure in the home itself. Photos cannot replace a survey. If you are away, a key holder lets us in: you, a relative, your property manager or an agency.
- 3
Written, fixed quote
You receive a written quote naming the profile system, the glass for each opening, the hardware and the VAT. The price on the quote is the price you pay.
- 4
Made to measure and fitted
The windows are made to measure and fitted with triple-barrier sealing: watertight outside, insulated in the middle, vapour-tight inside. The old frames are taken away. See replacing windows from abroad if you will not be there.
Our work
What a well-finished installation looks like
Jobs by our Madrid team, the same company as our Costa Blanca office: Kömmerling uPVC windows, doors and enclosures fitted by our own people.
Glazed galleryGlass roof on uPVC profiles
Indoor poolEnclosure exposed to humidity and chlorine
House with a gable windowThe apex glazed without a frame splitting the glass
Who signs what
Four guarantees, and who gives each one
The fitting is covered by the 3-year legal guarantee of conformity. Kömmerling gives 10 years on the profile; glass and hardware follow their manufacturers.
Fitting and the whole job
Tu Ventana (legal guarantee of conformity)
Spanish consumer law gives you a 3-year guarantee of conformity on the goods and their installation (art. 120 TRLGDCU). This is the guarantee that covers our work.
Profile
Kömmerling
Signed by Kömmerling, not by us.
Glass unit
Glass manufacturer
Signed by the glass manufacturer, not by us.
Hardware
Hardware manufacturer
Signed by the hardware manufacturer, not by us.
An honest comparison: uPVC, aluminium and timber
Against aluminium with a thermal break: good aluminium systems exist and suit very large openings. At an equal level of range, uPVC still insulates better and has fewer parts that suffer from salt. Full comparison in uPVC vs aluminium.
Against timber: timber is beautiful, but 3,000 hours of sun and salt air mean regular varnishing. Few owners of a second home want that job.
About FENSA: FENSA and BFRC A-ratings do not exist in Spain. The equivalent evidence is CE marking under UNE-EN 14351-1 plus the Declaration of Performance, which lists the tested classes. Read FENSA and A-rated windows in Spain.
What we do not promise
Our price is not the lowest you will find. Someone can fit the same opening for less; the saving is usually in hardware, steel reinforcement or perimeter sealing.
We do not give a fixed price over the phone without seeing the openings. A guessed figure tends to go up on fitting day.
We do not fit generic profiles under a trade name. If the quote names a brand, that is the brand fitted.
Ask for a quote
Tell us where the home is, how many windows and doors it has, and which way they face.
Questions we are asked
Frequently asked questions
Is uPVC or aluminium better near the sea?
For homes on this coast, uPVC in most cases. It does not conduct the heat of the summer sun into the room, and it does not corrode. Well-lacquered aluminium also resists salt. In both cases the steel hardware is the weak point, so ask for an anti-corrosion treatment on the front line.
Do I need triple glazing in Spain?
On the Costa Blanca coast, almost never. Winters are mild and frost on the coast is rare, so the gain is small for the cost and weight. Low-E double glazing with solar control glass on sunny façades does more for your comfort.
What is a g-value and why does it matter here?
The g-value is the share of solar energy that passes through the glass. Ordinary double glazing is around 0.80; solar control glass can be below 0.40. With almost 3,000 hours of sun a year, it decides how hot a west-facing room gets.
Should I replace the roller shutter box too?
Usually yes, and at the same time as the windows. An old brick shutter box is uninsulated and open to the street. The Kömmerling RolaPlus box reaches a U-value from 0.79 W/m²K and up to 50 dB of sound reduction. Doing both together also gives a cleaner finish.
Can you replace my windows if I live in the UK?
Yes. A key holder lets us in for the survey and the fitting, and the rest is handled with Eduardo in English on WhatsApp. See replacing windows from abroad.
Is there a FENSA certificate in Spain?
No. FENSA is a scheme for England and Wales. In Spain, windows carry CE marking under UNE-EN 14351-1 with a Declaration of Performance. Ask for it: it lists the tested air, water and wind classes. More in our FENSA guide.
Why won’t you give me a price by phone?
Because the price depends on the exact size of each opening, the state of the subframe and shutter box, and access. A figure given without a survey tends to change on fitting day. We measure first and then give a written, fixed price with VAT included.
What guarantee do I get?
The fitting is covered by the 3-year legal guarantee of conformity under Spanish consumer law. Kömmerling guarantees the profile for 10 years. The glass and hardware guarantees are set by their manufacturers.
